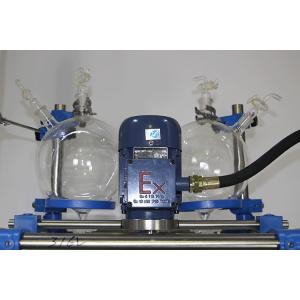

    Semi Automatic Jacketed Glass Reactor Vessel Double Layer Practical Strcture

    Ask Lasest Price
    Brand Name : NTSJ
    Model Number : FPGR-50
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets/momth
    Delivery Time : within 5days after payemnt received
    • Product Details
    • Company Profile

    Semi Automatic Jacketed Glass Reactor Vessel Double Layer Practical Strcture

    Glass Reactor Laboratory

    This series of reaction kettles is a new double-layer glass reaction kettle produced by our company according to the actual requirements and standards of customers. It absorbs the advantages of international and domestic similar products, and at the same time boldly innovates, not only easy to use (can be easily moved, operated and cleaned by one person) , dismantling), and the structure is novel and practical, the appearance is beautiful and generous, and it is an ideal equipment for experiments and production of modern chemistry, fine chemicals, bio-pharmaceutics, new material synthesis and so on.

    Main features

    Customizable

    Single layer & double & triple layer reactors are also available.

    Made by high-borosilicate glass 3.3, with good physical and chemical performance.

    Perfect match between lid and reaction flask with frosted surface for perfect sealing.

    Optional Explosion-proof design.

    Accurate control of rotating speed.

    The number of necks on reaction lid can be customized.



    Product Model

    Volume(L)

    Neck No.on Cover

    External
    Diameter of
    inner Vessel(mm)

    External
    Diameter of
    outer Vessel(mm)

    Cover Diameter

    Vessel Height(mm)

    Motor Power(w)

    Vacuum Degree(Mpa)

    Rotation
    Speed(rpm)

    Torque(Nm)

    Power(V)

    Dimension(mm)
    PGR-3
    3
    4
    150
    200
    150
    300
    40
    0.098
    50-1400
    0.27
    220
    320*350*900
    PGR-10
    10
    6
    230
    265
    450
    140
    0.098
    50-600
    2.23
    220
    650*650*1900
    PGR-50
    50
    6
    365
    410
    265
    850
    140
    0.098
    50-600
    2.23
    220
    800*600*2300
    PGR-100
    100
    6
    460
    500
    340
    950
    250
    0.098
    50-600
    3.98
    220
    1000*700*2700
    PGR-200
    200
    6
    600
    650
    340
    1200
    750
    0.098
    50-600
    6.37
    220
    1200*900*3200



    Packing and delivery
    Glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases.
    Both neutral and customized packaging can be available.Besides, you can choose to use your own shipping agent.

    Our factory

    Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.

    The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products.


    Semi Automatic Jacketed Glass Reactor Vessel Double Layer Practical Strcture

    Our service

    Customizable

    The seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced.

    The seller will provide the accessories and charge themaintenance cost according to the price.

    For on-site installation and commissioning, additional charges will apply.


    The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables)

    If there are quality problems in the parts during the warranty period.
